INTRODUCTION

May 2016 - June 2017 I had the pleasure of working with Product Design Professor Beth Esponnette, and Chemist Casey Check, on research for my Robert D. Clark Honors College Thesis. I am proud to have passed my thesis defense with distinction, and to have been awarded the Interdisciplinary Thesis Award at the 2017 Honors College Commencement Ceremony.

SUMMARY

3D printing offers advantages in customizability, sustainability, cost reduction, precision, and accessibility over traditional manufacturing processes. The limitation of printable materials, however, is still a major barrier preventing 3D printing moving from prototyping to producing final products. My thesis addresses the need to be able to 3D print thermosets (more robust and customizable polymers). The main objectives of this project were to develop a new system of 3D printing to allow for additive manufacturing with rubbers, and to design a product dependent on this method for production that would utilize the resultant ability to manufacture new complex structures in rubber.

STEP 1: printing proof of concept tests by hand



Experimenting with two part silicone and polyurethane prints with varying support materials and sulphur as an inhibitor



silicone inhibited by sulphur

press to zoom

silicone supported by part A

press to zoom

polyeurethane POC (before)

press to zoom

polyeurethane POC (after)

press to zoom

Selectively curing liquid latex by printing with a vinegar solution



printing vinegar in latex

press to zoom

first layer of vinegar in latex

press to zoom

multiple layers

press to zoom

trying to remove the print

press to zoom

Developing different ways to mix the vinegar and latex while printing



experimenting with ways to react vinegar and latex

press to zoom

one syringe inside another

press to zoom

trying to print uniform lines

press to zoom

dried latex (w/o vinegar)

press to zoom

Printing structures with just latex



printing structures

press to zoom

16 layers thick

press to zoom
press to zoom
press to zoom

Tensile strength testing



latex test strip

press to zoom

setting up the machine

press to zoom

stretching the latex

press to zoom

tensile strength graph

press to zoom

Finding a compatable support material



filling glass syringe with soy wax

press to zoom

melting wax in syringe

press to zoom

testing viscosity and material compatibility of support materials with latex

press to zoom

success using poly(tetrahydrofuran)

press to zoom

STEP 2: selection and purchase of a 3D printer machine



ENGINE SR - STANDARD RESOLUTION
High Reliability - Low Maintenance - High Uptime

  • Works with all Hyrel print heads, allowing it to work with numerous materials

    • filaments, liquids, gels, etc.​

  • Can use multiple heads (with different materials) in the same print

  • Extremely customizable

  • Operated by tablet, allowing gcode revisions on the go

  • Heated bed and cooling fan options

STEP 3: showcase this new manufacturing process for rubber through design



Inspiration: Patagonia's natural rubber wetsuit

Objective: Design a 3D printed rubber wetsuit material that will perform better and be more sustainable than traditional neoprene wetsuits

Theory: 3D printed structures would have the ability to trap more air in more regular patterns opposed to traditional neoprene, and as a result could offer better thermal insulation properties with thinner material

Research:

  • neoprene material properties

  • wetsuit manufacturing

  • other innovative insulation solutions for wetsuits

  • interview a surfer

CAD: try printing different options and test which one works the best


STEP 4: practice and refine printing the CAD file by manipulating gcode


press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom

printer set up

press to zoom

printing just latex

press to zoom

trying to calibrate both heads

press to zoom

printing one large cone with latex and poly(tetrahydrofuran)

press to zoom

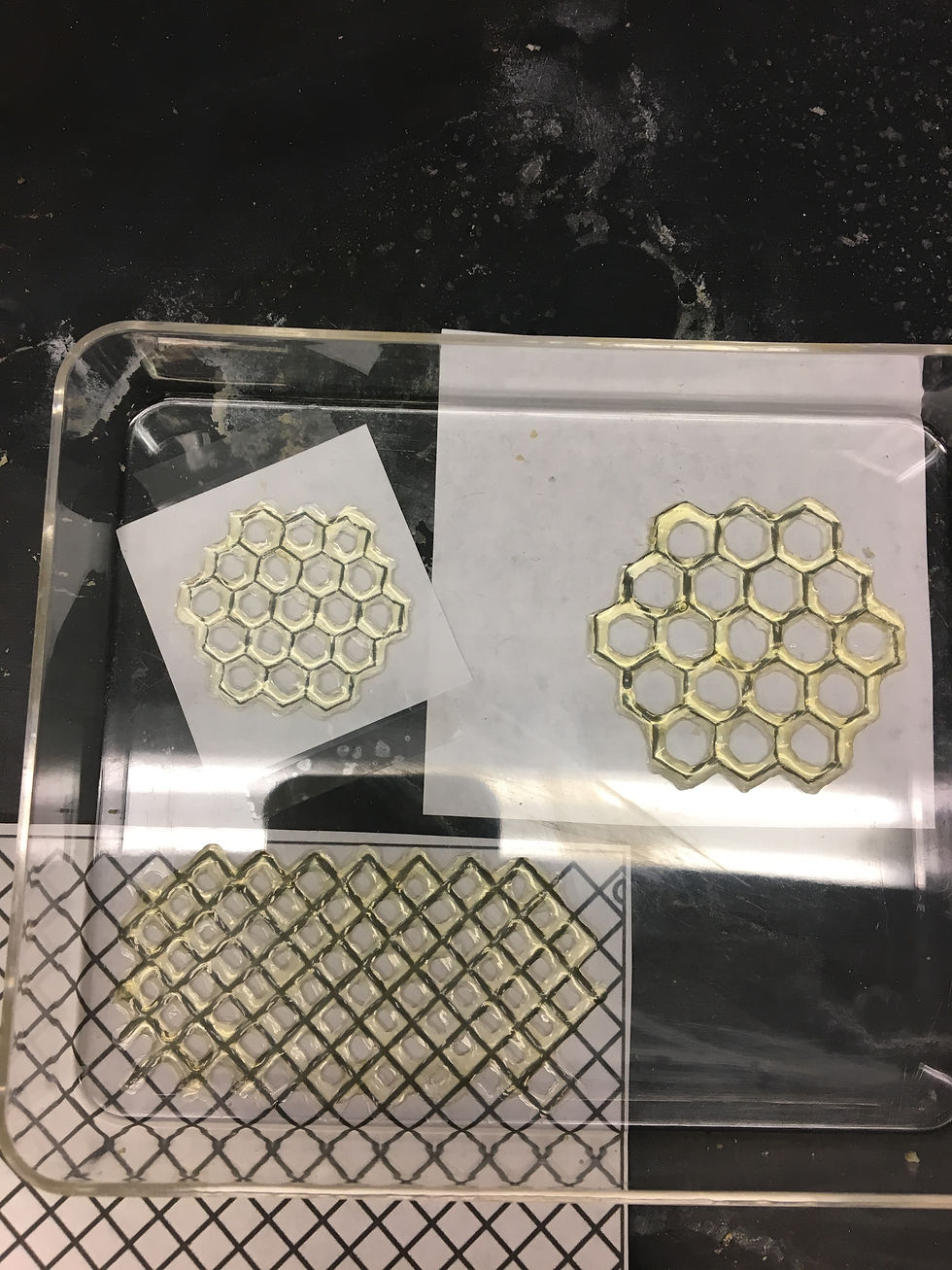

printing an enlarged version of one of my patterns

press to zoom

printing a pattern at 1:1 scale

press to zoom

STEP 5: write a paper for the Journal of Additive Manufacturing



When I graduated in June 2017, I handed off my work to graduate students in the Material Science Institute Graduate Internship Program to work on over the summer. Their job will be to continue overcoming some of the issue we ran into such as optimizing speed and flow rate by monitoring the following variables:

  • Material type

  • Extruder/print head

  • Flow rate from extruder

  • Temperature (of print head, and print bed)

  • Nozzle diameter

  • X-Y speed

  • Z height

Due to unexpected challenges programing the printer, I did not complete testing the insulation properties or tensile strength of the different patterns I created, so the graduate students will be addressing these as well. The journal article will instead cover what we have learned so far about developing a method to print with latex and finding Poly(tetrahydrofuran) as a compatible support material. The current plan is to write and submit the article in August 2017 (stay tuned for publishing updates). My hope is that this research will serve as a foundation to inform and inspire others to build off of in the future.
